For installation in concrete pours, gravel roads, dirt roads, under pavers, or underneath asphalt.
If you plan to cut in these loops please go back and select “Saw-Cut Application” to view the proper diagrams.

Notes about Slide Gates:

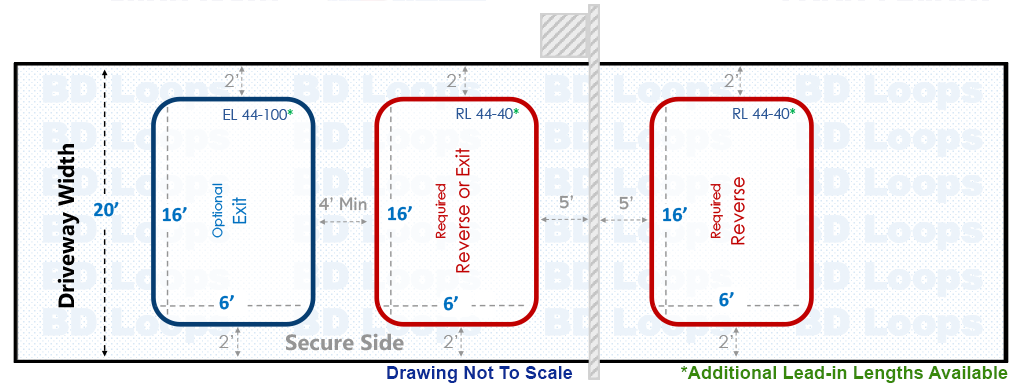

Slide gates require a minimum of 2 loops to properly protect the gate path as pictured in red above:

• An Inside Reverse Loop or Exit Loop
• An Outside Reverse Loop

Reverse Loops will hold the gate open, or reverse a closing gate if a vehicle enters or stops within the gate path. The inside reverse loop can be connected to the exit loop function if you desire. An Exit Loop will do everything a reverse loop does and will also open the gate automatically when a car drives over it.

If there is a long approach on the secure side of the property we recommend installing an additional exit loop further down the driveway. This will allow more time for the gate to open before vehicles reach the system. Customers will enjoy the convenience of exiting the system without having to wait for the gate to open.

Have Questions about your Application?

Have limited space to install loops or unusual jobsite circumstances?
BD Loops is here to help!

P: 714-723-0946
E: Team@BDLoops.com

Disclaimer:

BD Loops makes loop layout diagrams available to enhance public knowledge and promote a better understanding of proper loop installations. BD Loops attempts to provide accurate and complete information. However, BD Loops cannot guarantee the quality, content, accuracy, or completeness of the information presented in this diagram. Extenuating circumstances that BD Loops is not aware of may affect the accuracy of its information. (For example a parking space close to the loop system, a divider island being present, metal grate in the area of the loops, etc.) If you feel your installation might require special installation instructions please contact BD Loops at: 714-723-0946 for help with a custom layout diagram that takes the special circumstances of your application into consideration.
